Upstream Sediment protection
SHIELD
PRE-FILTER

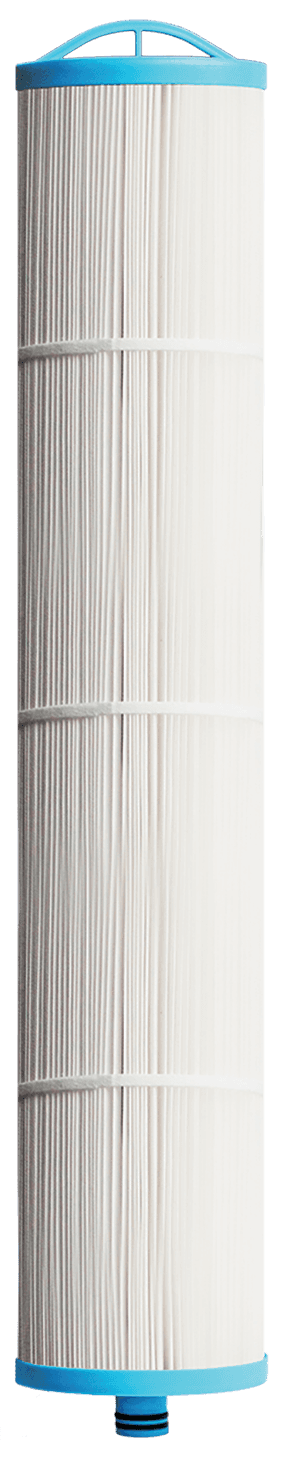

Dual-gradient pleated filters protect downstream SHIELD filter cartridges from particulate load - extending primary filter life and maintaining system performance. Specified by your dealer based on your water profile.
NSF/ANSI 60
ca prop 65
IAPMO
Removes sand, silt, debris, sediment, and particulate
High-flow filter capable of up to 20 Gallons per Minute (GPM)
Protects downstream equipment from premature expiry
Download
spec sheet
NSF 60
Safety Certified
20 GPM
Peak flow rate
100,000+
Gallon capacity
Upstream Sediment protection
SHIELD
PRE-FILTER
Dual-gradient pleated filters protect downstream SHIELD filter cartridges from particulate load - extending primary filter life and maintaining system performance. Specified by your dealer based on your water profile.
NSF/ANSI 60
ca prop 65
IAPMO
Removes sand, silt, debris, sediment, and particulate
High-flow filter capable of up to 20 Gallons per Minute (GPM)
Protects downstream equipment from premature expiry
Download
Spec sheet
NSF 60
sAFETY cERTIFIED
20 GPM
Peak flow rate
100,000+
Gallon capacity
Upstream Sediment protection
SHIELD
PRE-FILTER
Dual-gradient pleated filters protect downstream SHIELD filter cartridges from particulate load - extending primary filter life and maintaining system performance. Specified by your dealer based on your water profile.
NSF/ANSI 60
CA PROP 65
IAPMO
Removes sand, silt, debris, sediment, and particulate
High-flow filter capable of up to 20 Gallons per Minute (GPM)
Protects downstream equipment from premature expiry
Download
Spec sheet
NSF 60
SAFETY CERTIFIED
20 GPM
Peak flow rate
100,000+
Gallon capacity
Three filtration levels
Choose the right micron rating
for your water quality.
Choose the right micron rating
for your water quality.
Your dealer selects the rating based on your water source and particulate analysis.
Your dealer selects the rating based on your water source and particulate analysis.
SLD-PRE-5020
50–20 Micron
Heavy-duty pre-filtration for high sediment applications. Removes sand, silt, rust, and large debris to protect downstream filters from rapid clogging.
Ideal for
Well water, rural areas, high sediment conditions
Removes sand, silt, and debris
Protects downstream equipment
High-capacity, easy replacement
SLD-PRE-2010
20–10 Micron
Balanced pre-filtration for moderate sediment levels. Removes silt, fine rust, and organic debris - ideal for moderately turbid municipal or well supplies.
Ideal for
Municipal water, suburban areas, general use
Removes fine particulate
Protects downstream equipment
High-capacity, easy replacement
SLD-PRE-1005
10–05 Micron
Ultra-fine pre-filtration for maximum water clarity. Protects carbon block cartridges from fine turbidity that shortens service intervals significantly.
Ideal for
Low sediment water, high clarity applications
Removes ultra-fine particulate
Protects downstream equipment
High-capacity, easy replacement
Why upstream prefiltration matters
Protect the filter that protects everything.
Not every home needs a prefilter - your dealer will test your water and specify based on actual sediment load.
01
Extended Primary Filter Life
Carbon block filters like PALADIN and GUARDIAN clog faster when water carries high sediment loads. A prefilter upstream catches larger particles before they reach the carbon block - significantly extending the service interval and protecting your investment in the primary filter cartridge.
Maintained Flow Rate
Sediment accumulation inside a carbon block filter reduces flow rate over time. Pre-filtering prevents premature restriction, maintaining peak flow performance - 8 GPM at the primary filter - for the full rated cartridge life.
02
03
Sediment-Specific Filtration
Carbon block filters are optimized for chemical and microbial removal, not high sediment loads. Using a dedicated sediment prefilter lets each stage do what it does best - sediment capture upstream, health-contaminant removal downstream.
Why upstream prefiltration matters
Protect the filter that protects everything.
Protect the filter that protects everything.
Not every home needs a prefilter - your dealer will test your water and specify based on actual sediment load.
Not every home needs a prefilter - your dealer will test your water and specify based on actual sediment load.
01
Extended Primary Filter Life
Carbon block filters like PALADIN and GUARDIAN clog faster when water carries high sediment loads. A prefilter upstream catches larger particles before they reach the carbon block - significantly extending the service interval and protecting your investment in the primary filter cartridge.
02
Maintained Flow Rate
Sediment accumulation inside a carbon block filter reduces flow rate over time. Pre-filtering prevents premature restriction, maintaining peak flow performance - 8 GPM at the primary filter - for the full rated cartridge life.
03
Sediment-Specific Filtration
Carbon block filters are optimized for chemical and microbial removal, not high sediment loads. Using a dedicated sediment prefilter lets each stage do what it does best - sediment capture upstream, health-contaminant removal downstream.
03
Sediment-Specific Filtration
Carbon block filters are optimized for chemical and microbial removal, not high sediment loads. Using a dedicated sediment prefilter lets each stage do what it does best - sediment capture upstream, health-contaminant removal downstream.
Technical specifications
Built for whole-home protection.
Built for whole-home protection.
Model SLD-PRE-5020, SLD-PRE-2010, SLD-PRE-1005 on SHIELD Core housing platform.
Model SLD-PRE-5020, SLD-PRE-2010, SLD-PRE-1005 on SHIELD Core housing platform.
Specification
SHIELD PRE-FILTER 5020 (SLD-PRE-5020)
SHIELD PRE-FILTER 2010 (SLD-PRE-2010)
SHIELD PRE-FILTER 1005 (SLD-PRE-1005)
Filtration Level
50-micron (outer) | 20-micron (inner)
20-micron (outer) | 10-micron (inner)
10-micron (outer) | 5-micron (inner)
Peak Flow Rate
30 Gallons Per Minute (GPM)
Service Flow Rate
20 GPM
Particulate Removal Capacity
100,000 gallons
Filter Technology
Dual-Gradient Pleated Filter
Housing
SHIELD Core with Integrated Bypass, Flow Meter, SHIELD IQ Controller
Connection Size
1" MNPT
Filter Removal
Tool-Free Snap-Ring Design
Filter Certifications
NSF 60 | IAPMO
Housing Certifications
NSF/ANSI 42, 44, 53 Listed
Installation
Point-of-Entry (POE) - Professional Installation Required
Service Interval
Dealer-specified based on Water Usage and Water Chemistry - Tracked by SHIELD IQ
Dimensions
XX" x XX" x XX"
Specification
SHIELD PRE-FILTER 5020 (SLD-PRE-5020)
SHIELD PRE-FILTER 2010 (SLD-PRE-2010)
SHIELD PRE-FILTER 1005 (SLD-PRE-1005)
Filtration Level
50-micron (outer) | 20-micron (inner)
20-micron (outer) | 10-micron (inner)
10-micron (outer) | 5-micron (inner)
Peak Flow Rate
30 Gallons Per Minute (GPM)
Service Flow Rate
20 GPM
Particulate Removal Capacity
100,000 gallons
Filter Technology
Dual-Gradient Pleated Filter
Housing
SHIELD Core with Integrated Bypass, Flow Meter, SHIELD IQ Controller
Connection Size
1" MNPT
Filter Removal
Tool-Free Snap-Ring Design
Filter Certifications
NSF 60 | IAPMO
Housing Certifications
NSF/ANSI 42, 44, 53 Listed
Installation
Point-of-Entry (POE) - Professional Installation Required
Service Interval
Dealer-specified based on Water Usage and Water Chemistry - Tracked by SHIELD IQ
Dimensions
XX" x XX" x XX"
Specs
SHIELD PRE-FILTER 5020 (SLD-PRE-5020)
SHIELD PRE-FILTER 2010 (SLD-PRE-2010)
SHIELD PRE-FILTER 1005 (SLD-PRE-1005)
Filtration Level
50-micron (outer) 20-micron (inner)
20-micron (outer) 10-micron (inner)
10-micron (outer)
5-micron (inner)
Peak Flow Rate
30 Gallons Per Minute (GPM)
Service Flow Rate
20 GPM
Particulate Removal Capacity
100,000 gallons
Filter Technology
Dual-Gradient Pleated Filter
Housing
SHIELD Core with Integrated Bypass, Flow Meter, SHIELD IQ Controller
Connection Size
1" MNPT
Filter Removal
Tool-Free Snap-Ring Design
Filter Certifications
NSF 60 | IAPMO
Housing Certifications
NSF/ANSI 42, 44, 53 Listed
Installation
Point-of-Entry (POE) - Professional Installation Required
Service Interval
Dealer-specified based on Water Usage and Water Chemistry - Tracked by SHIELD IQ
Dimensions
XX" x XX" x XX"
Ready to protect your family?
Find a certified SHIELD dealer near you for water testing and expert recommendations.
Ready to protect your family?
Find a certified SHIELD dealer near you for water testing and expert recommendations.
Ready to protect your family?
Find a certified SHIELD dealer near you for water testing and expert recommendations.
